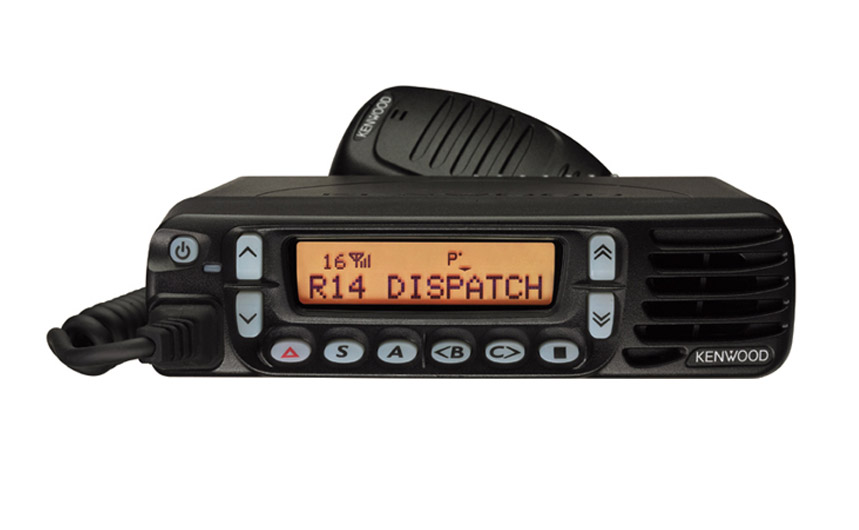

TK-7180H/7180/8180H/8180 VHF/UHF FM Mobile Two-Way Radios

SKU: TK-7180H / 7180 / 8180H / 8180 Category:


Wide Band Operation:
The TK-7180H/7180/8180H/8180 models feature wide band UHF (70 MHz) and VHF (38 MHz) coverage in one radio model.

Mobile Elegance:
KENWOOD employed premium industrial design concepts to make the TK-7180H/7180/8180H/8180 mobiles functionally practical, rugged and attractive whether vehicle or station installed.

512 Channels/128 Zones:
The large 512 channel / 128 zone capability* accommodates virtually any current or future capacity requirement for single or multiple site radio systems.
Maximum capacity notes*

  • 128 Conventional & LTR Zones cumulative maximum per radio
  • 512 Conventional Channels & Group ID’s (GID’s) cumulative maximum per radio
  • 250 Channels maximum per any Conventional Zone
  • 250 GID’s maximum per any LTR Zone

12-Character Dot-Matrix Display with Icons:
The backlighting and high-resolution dot matrix 12-character alphanumeric display provides easy-to-read channel aliases day or night. Also a 3-digit sub-display forzone/channel/group ID numbers and icons for function/status indicators make for intuitive operation.

Voice Inversion Scrambler:
The built-in voice inversion scrambler provides basic protection against casual eavesdropping.

Enhanced Kenwood Audio:
KENWOOD utilizes it’s long standing audio heritage to optimize voice frequency components so that the audio output cuts through typical ambient noise. This enhancement and the companded noise reduction provide clarity and low distortion especially on narrow bandwidth systems.

FleetSync GPS Ready:
The TK-7180H/7180/8180H/8180 has connection ports (internal or external) for GPS receiver units with a standard NMEA-0183 data output. This enables a FleetSync-compatible AVL system to track a fleet of TK-7180H/7180/8180H/8180 mobiles.

Remote Control Head Option:
The KRK-10 remote kit converts the front panel into a space saving remote control head for today’s smaller vehicles and console mounting.

Robust and Reliable:
The TK-7180H/7180/8180H/8180 is built to survive the hard knocks and harsh all weather environments of many type mobile installations. These mobiles meet or exceed the stringent the MIL-STD 810 C, D, E & F environmental standards including the demanding “driven rain” test.

Outstanding Features:
Conventional & LTR Trunking Zones:
The TK-7180H/7180/8180H/8180 operates on LTR trunking systems, conventional channels or any combination of both, facilitating mixed operation today or migration tomorrow.

FleetSync / FleetSync II:
KENWOOD’s FleetSync digital signaling system includes PTT ID digital ANI for instant radio call identification and Emergency status for personnel safety. FleetSync also includes status messaging, selective calling and short/long text dispatch messaging features. The TK-7180H/7180/8180H/8180 supports either original FleetSync or FleetSync II.*
*FleetSync and FleetSync II are incompatible.

Dual Priority & Scan Features:
Dual-Priority Scan automatically checks two important channels for activity while channel scanning (conventional zones only). Also, each radio can be programmed to scan any organization of channels, systems and talk groups using the many programmable scan features and parameters. Channel/ GID Delete/Add, Nuisance Delete and Priority Temporary Delete provide relief from non-essential voice traffic when scanning multiple channels or trunked talk groups.

The TK-7180H/7180/8180H/8180 includes industry standard signaling formats for the most common type radio systems.

Sub-audible QT tones and DQT digital codes provide industry standard talk group muting and segregation for conventional radio systems.


  • DTMF permits DTMF PTT ID, telephone interconnect operation, individual/group selective calling and remote radio disable/enable (remote stun).
  • 2-Tone Selective Calling:
  • Four code pairs each with individual and group page settings and audio visual alerts can be assigned per channel.

VGS-1 Voice Guide & Storage Unit:
This innovative KENWOOD option makes several functions possible. “Voice Guide” announces zone, channel, groups and feature activation/deactivation in a clear synthesized voice .A great tool for radio communications training or as an aid for the sight or physically impaired. “Voice Storage” records up to 300 seconds of receive audio for missed calls or your own voice for memo recording. It also can transmit an “Auto-Reply” greeting and record voice messages for unattended radios while away from the radio or while in a meeting (the calling unit must send a FleetSync selective call for activation). The VGS-1 can be used to store FleetSync GPS AVL data*. * Voice functions are not available when the VGS-1 is used for FleetSync GPS data storage.

Easy Option Port:
KENWOOD’s plug-in option port makes the VGS-1 option and compatible after-market board installation a quick and simple.
