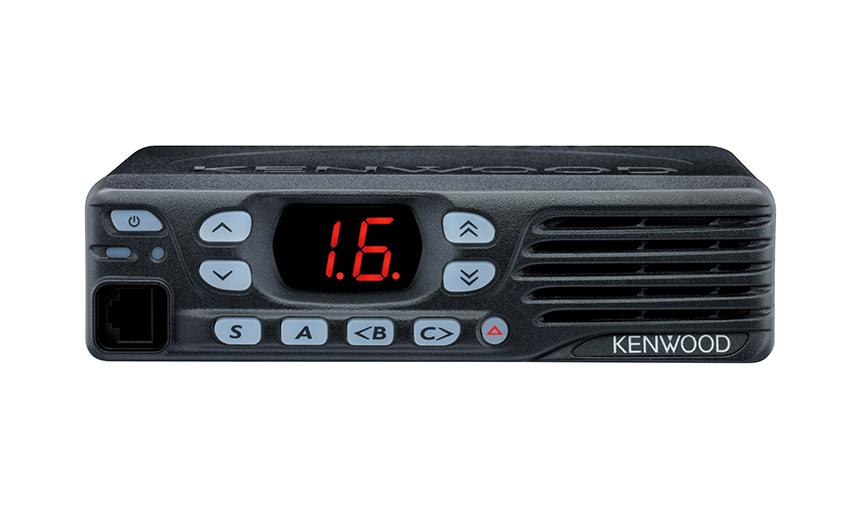

TK-7302HV/8302HU VHF/UHF Compact FM Mobile Two-Way Radios

SKU: TK-7302HV / 8302HU Category:


KENWOOD’s new TK-7302HV/8302HU delivers reliable mobile performance with extra wideband coverage (UHF: 70MHz) and such features as QT/DQT signaling, multiple scan functions and a voice inversion scrambler. Yet this tough IP54/MIL-STD-compliant radio is decidedly user-friendly, providing high-quality audio, voice announcement, and a large display with adjustable brightness for simple operation, day and night.

16 Channels, 2 Zones:
The TK-7302HV/8302HU offers ample capacity for multiple channels and radio systems: 16 channels and 2 zones. And once it is programmed, users can select specific channels within a set range.

Enhanced Kenwood Audio:
Clear audio means confident communications, but power output is not the only factor that determines how easy it is to use a radio in varying noisy environments. As an audio specialist experienced in psychoacoustics, KENWOOD can draw on decades of expertise at every step: component selection, construction, optimization, evaluation and analysis. The resulting audio performance – specially engineered for transceivers and with frequency response optimized for the human voice – is undeniably clearer and crisper.

External D-SUB 15-PIN Interface:
A D-sub 15-pin terminal enables the simple connection of various types of external equipment. It can be used for Ignition sense, External Switch, Horn Alert, and External Mic, among others. A Molex interface is also available with the optional KCT-60M cable.

Multiple Signaling
Encoder/decoder function uses QT/DQT to segregate talk groups, so users only hear calls from their own group. DTMF PTT ID is included for dispatch operations or for a simple remote control application.

FleetSync PTT ID, SelCall & Status:
Utilizing KENWOOD’s FleetSync signaling protocol, the TK-7302HV/8302HU has PTT ID (ANI: automatic number identification) and Selective Calling capabilities for managed dispatch operations. Programmed Status(by FPU) can also be sent.

2 Tone (Encode/Decode):
The 2-tone signaling format is provided for use with the most common radio systems.

MDC-1200 Signaling:
Built-in MDC signaling means the following features are available:

  • PTT ID Encode
  • Emergency Encode
  • Stun/Revive Decode
  • Radio Check Decode

Emergency Alert:
For hazardous/hostile duty environments, a PF key can be programmed for emergency use to alert the dispatcher or other group members via DTMF, FleetSync or MDC-1200 signaling.

Programmable Voice Inversion Scrambler:
The built-in programmable voice inversion scrambler provides basic protection against casual eavesdropping. It is possible to have a unique scrambler setting for each channel by picking the voice inversion frequency from one of 16 tables.

Programmable Blue LED:
The blue LED indicator can be customized to provide useful status information.
For example, it can be used in combination with the orange LED for Selective Call differentiation.

GPS Feature:
Connected to an external GPS receiver, the TK-7302HV/8302HU can transmit accurate vehicle location data to the central base station for fleet management purposes. Designated scrambler and GPS modules can be installed internally.
